Friday, June 26, 2015
Tool Bit Grinding Fixture

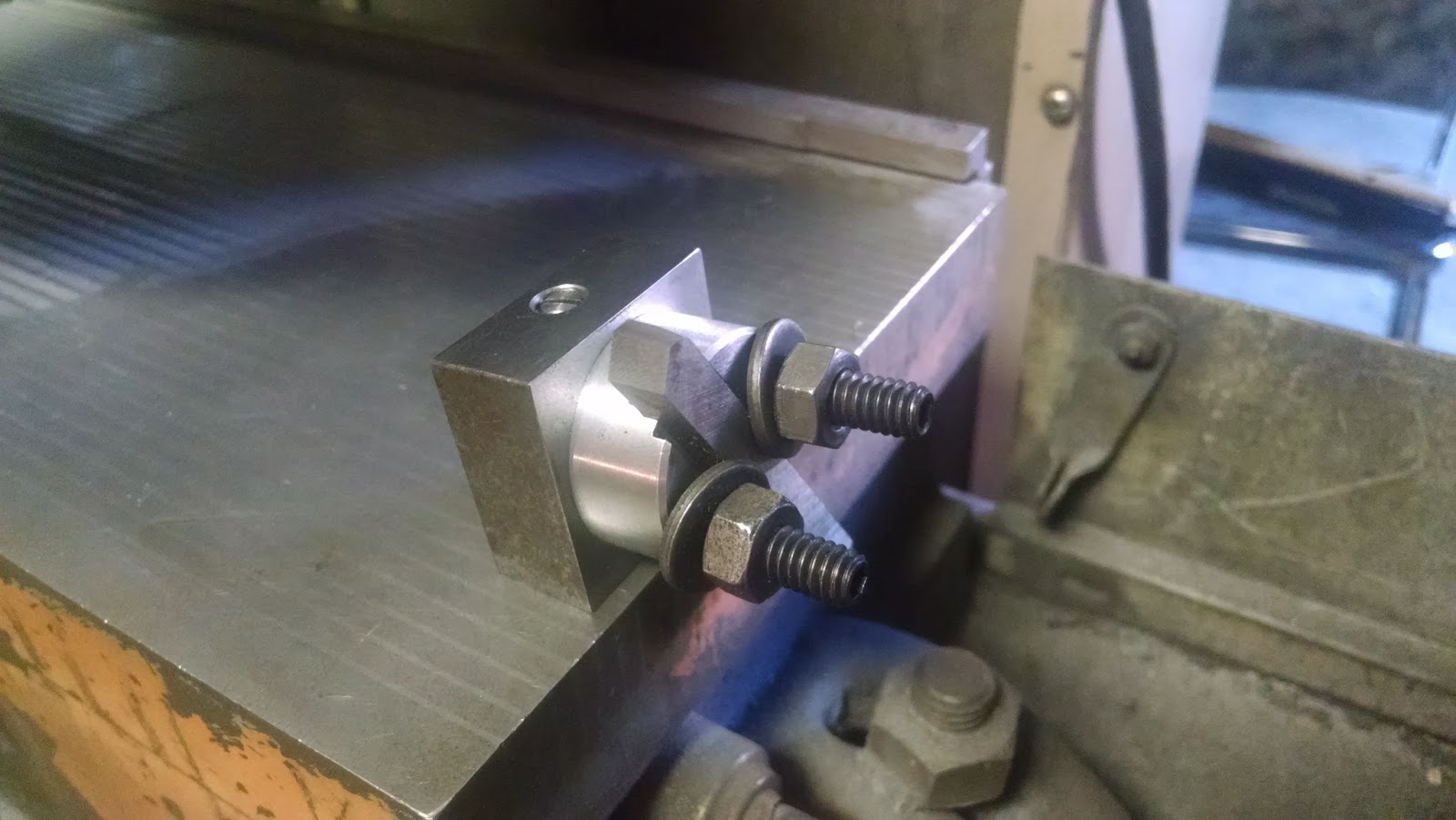

Built a tool bit grinding fixture for the surface grinder. Can hold 3/8", 1/4", and 3/16" toolbits, aswell as 1/4" round using the shoulder from the 3/16" cutout. Still need to make a clamp, but nuts and washers work for now.
Has a 7 degree relief angle built into it, but if I need more I can use the wheel radius to help me, and feed using the (In mill terms) Y axis.
Andre Gross,
3127 Machine.
